3232926 - 3350A anti - spin regulation devices

Warning light operationIn the case of problems, the ASR system switches off automatically and the ASR warning light in the instrument panel and the ASR warning light on the button come on constantly.

The Infocenter, in turn, signals the fault by the warning light, together with the message, coming on.

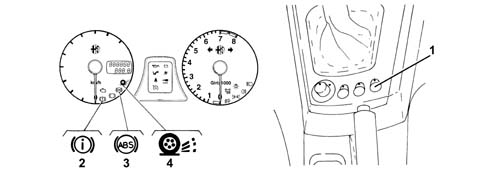

If the ASR system is not working properly, the vehicle behaves like a version on which this system is not fitted. 1 - ASR warning light in button 2 - EBD warning light in instrument panel 3 - ASR warning light in instrument panel 4 - ASR warning light in instrument panel The table below summarizes the warning light readings in the different operating conditions.

	System status	ASR warning light on button	EBD warning light in instrument panel	ABS warning light in instrument panel	ASR warning light in instrument panel
Check (4s)	EBD/ABS/ASR OFF for the first 500ms	ON	ON	ON	ON
Running	EBD/ABS/ASR ON	OFF	OFF	OFF	OFF
ASR deactivated manually	EBD/ABS ON ASR OFF	ON	OFF	OFF	ON
EBD faulty	EBD/ABS/ASR OFF	ON	ON	ON	ON
EBD faulty	EBD ON ABS/ASR OFF	ON	OFF	ON	ON
TC/ASR faulty	EBD/ABS ON ASR OFF	ON	OFF	OFF	ON
Insufficient brake fluid level or parking brake on	EBD/ABS/ASR ON	OFF	ON	OFF	OFF
ASR in action	EBD/ABS/ASR ON	OFF	OFF	OFF	INTERMITTENT

For the operation of the warning lights for all remaining versions excluding the GTA  Characteristic of working principle 3350E  vehicle direction control system vdc .
