3309637 - E3090 PARKING SENSOR - Wiring diagram

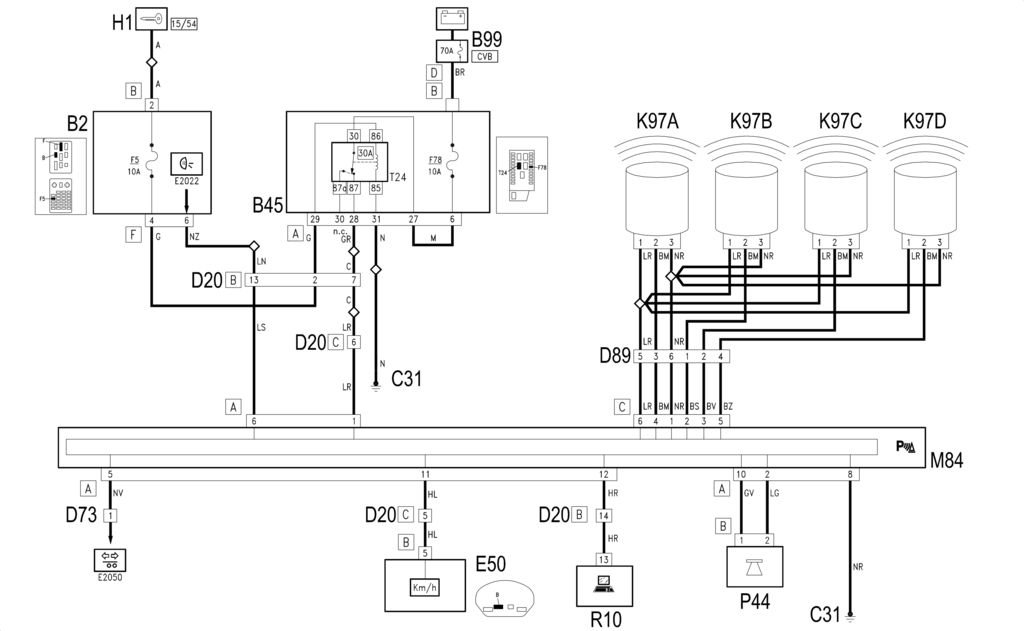

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B2 | Junction unit | 5505A |
| B45 | Luggage compartment junction unit (CVB) | - |
| B99 | Battery fuses junction unit (CBA) | 5530B |
| C31 | Rear right earth | - |
| C34 | ICS earth | - |
| D20 | Dashboard-rear coupling | - |
| D73 | Trailer wiring connection | - |
| D89 | Rear.-rear bumper coupling | - |
| E50 | Instrument panel | 5560B |
| H1 | Ignition switch | 5520A |
| K97 | Parking sensor | - |
| M84 | Parking control unit | - |
| P44 | Rear buzzer for parking sensors | - |
| R10 | Multiple tester connection | - |
