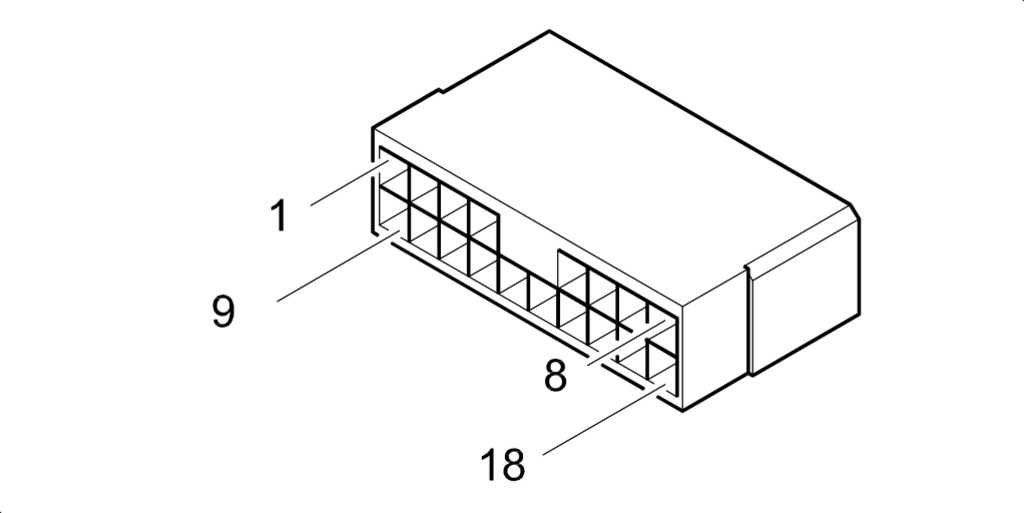

3311177 - D6 Rear - front coupling ( REAR )
| Wiring | Colour |
|---|---|
| 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec.. | Colour | Nodo | Connect. | Pin | |
| 1 | LB | K29 | 4 | ||
| 2 | RV | K29 | 5 | ||
| 3 | BS | M84B | 8 | ||
| 4 | BV | M84B | 6 | ||
| 5 | BZ | M84B | 7 | ||
| 6 | BM | M84B | 5 | ||
| 7 | LR | M84B | 2 | ||
| 9 | 1 | CL | N44 | 1 | |
| 10 | NR | M84B | 1 | ||
| 11 | 1 | AB | D73 | 5 | |
| F31B | 1 | ||||
| B45A | 52 | ||||
| M30B | 1 | ||||
| 12 | CN | F31B | 2 | ||
| 13 | 1 | AN | D73 | 6 | |
| F30B | 3 | ||||
| M30B | 2 | ||||
| B45A | 50 | ||||
| 14 | C | F30B | 2 | ||
| 15 | 1,5 | GR | N40 | 4 | |
| 15 | VN | N44 | 2 | ||
| N40 | 3 | ||||
| I50 | 3 | ||||
