3314882 - 5540B44 dipped beam for one gas discharge lighting unit one lh or rh r r

Removing ( Refitting ) Make sure that the ignition is off (STOP position), then disconnect the negative battery terminal (refer to op.   5530B10  battery - r+r ).

	Name	Connector
-	Battery	A1B

 - 7040D12  engine front side cover (one) lh or rh - r r . 1. Disconnect the electrical connection from the exhaust gas headlamp control unit.

	Name	Connector
1	Left headlamp	F10

	Name	Connector
1	Right headlamp	F11

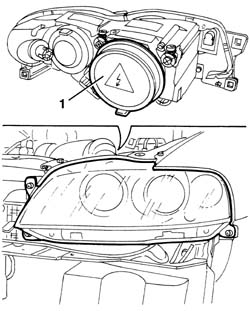

 - 5540C40  motor (1), lh or rh, for correcting/aligning gas discharge light unit r r . 1. Rotate the exhaust gas headlamp control unit in a clockwise direction to release it from the fastening on the light cluster and move it as far away as possible.2. Undo the nuts (2a) and move the protective cover (2b) away. 1. Rotate in an anti-clockwise direction and disconnect the electrical connection from the dipped headlamp bulb.

	Name	Connector
1	Left headlamp	F10

	Name	Connector
2	Right headlamp	F11

2. Release the retaining spring (2a) and remove the dipped headlamp bulb for the exhaust gas headlamps (2b).

If the lamp is working properly, avoid touching the bulb with your hands. If this does happen, clean the bulb with alcohol.

Refitting ( Removing ) Place the exhaust gas dipped headlamp bulb back in its housing in such a way that the references on the actual bulb and on the bulb holder coincide.Connect the electrical connection to the dipped headlamp bulb, rotating it in a clockwise directionPlace the protective cover back in its housing and fix it using the nuts.Rotate the exhaust gas headlamp control unit in an anti-clockwise direction to fasten it to the light cluster. - 5540C40  motor (1), lh or rh, for correcting/aligning gas discharge light unit r r . Connect the electrical connection to the exhaust gas headlamp control unit. - 7040D12  engine front side cover (one) lh or rh - r r . Connect the negative (-) battery terminal - 5540B38  headlamp/light cluster light beam - position . Removing ( Refitting )  - 7040D12  engine front side cover (one) lh or rh - r r

The bulb must be removed without the headlamp connected because the bulb terminals reach very high voltages as soon as it is switched on and during normal operation.

1. Remove the protective rubber cover. 1. Release the bulb retaining clip.2. Extract the bulb.3. Disconnect the electrical connection for the lamp.4. Keep the bulb.

If the lamp is working properly, do not touch the bulb with your hands; if this does happen, clean the bulb with alcohol.

Refitting ( Removing ) Check the condition and the cleanliness of the lamp.

Do not touch the bulb with your hands; if this does happen, clean the bulb with alcohol.

Place the bulb in position after having connected the electrical connection.Attach the retaining clip and position the protective cover. - 7040D12  engine front side cover (one) lh or rh - r rCheck the operation of the light cluster and the dipped and main beam headlamps.
