3314883 - 5540B46 lampada one main beam or turn signal lh or rh of one gas discharge lighting unit r r
Removing
(
Refitting
)
Make sure that the ignition
is off (STOP position), then disconnect the negative battery terminal
(refer to op.
5530B10 battery - r+r
).
| Name | Connector |
|---|
| - | Battery | A1B |
- 7040D12 engine front side cover (one) lh or rh - r r
.
1. Disconnect the electrical connection from the exhaust gas headlamp
control unit.
| Name | Connector |
|---|
| 1 | Left headlamp | F10 |
| Name | Connector |
|---|
| 1 | Right headlamp | F11 |

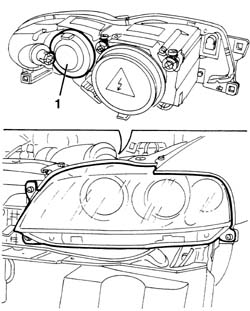

- 5540C40 motor (1), lh or rh,
for correcting/aligning gas discharge light unit r r
.
For the main beam headlamp bulb1. Rotate the exhaust gas headlamp control unit in a clockwise direction
to release it from the fastening on the light cluster and move it
as far away as possible.2. Disconnect the electrical connection from the main beam bulb.
| Name | Connector |
|---|
| 2 | Left headlamp | F10 |
| Name | Connector |
|---|
| 2 | Right headlamp | F11 |
3. Rotate the bulb in an anti-clockwise direction and remove it. | If the lamp is working properly,
avoid touching the bulb with your hands. If this does happen, clean
the bulb with alcohol. |
For the direction indicator
bulb1. Rotate the exhaust gas headlamp control unit in a clockwise direction
to release it from the fastening on the light cluster and move it
as far away as possible.2. Disconnect the electrical connection from the direction indicator
bulb.
| Name | Connector |
|---|
| 2 | Left headlamp | F10 |
| Name | Connector |
|---|
| 2 | Right headlamp | F11 |
3. Rotate the bulb in an anti-clockwise direction and remove it.
Ошибка в шаблоне. В ближайшее время мы ее исправим. (Error in Templaite)
Refitting
(
Removing
)
Place the bulb back in its
housing, rotating it in a clockwise direction and connect the electrical
connection.Rotate the exhaust gas headlamp control
unit in an anti-clockwise direction to fasten it to the light cluster. - 5540C40 motor (1), lh or rh, for correcting/aligning gas
discharge light unit r r
.
Connect the electrical connection to the
exhaust gas headlamp control unit. - 7040D12 engine front side cover (one) lh or rh - r r
.
Connect the negative (-) battery terminal - 5540B38 headlamp/light cluster light beam - position
.
Removing
(
Refitting
)
- 7040D12 engine front side cover (one) lh or rh - r r1. Remove the protective rubber cover.
1. Disconnect the electrical connection for the bulb.2. Release the bulb retaining clip.3. Extract the bulb. | If the lamp is working properly,
do not touch the bulb with your hands; if this does happen, clean the
bulb with alcohol. |
Refitting
(
Removing
)
Check the condition and the cleanliness
of the lamp. | Do not touch the bulb with your
hands; if this does happen, clean the bulb with alcohol. |
1. Fit the bulb in position as illustrated in the diagram.
Attach the retaining clip and connect the
electrical connection.Position the protective cover. - 7040D12 engine front side cover (one) lh or rh - r rCheck the operation of the light cluster
and the spot headlamps (flasher function).
