5550C18 BULB OF ONE FRONT TURN SIGNAL, L/H OR R/H - R+R - Alfa - 166 - eLearn

3314907 - 5550C18 bulb of one front turn signal, l/h or r/h - r+r

) Make sure that the ignition is off (STOP position), then disconnect the negative battery terminal (refer to op. 5530B10 battery - r+r ).

	Name	Connector
-	Battery	A1B

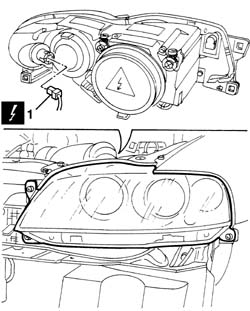

1. Disconnect the electrical connection from the front direction indicator bulb.

	Name	Connector
1	Left headlamp	F10A

	Name	Connector
-	Right headlamp	F11A

2. Rotate the bulb holder in an anti-clockwise direction and extract it.3. Remove the bulb for the front direction indicator from the bulb holder (bayonet fitting).

Refitting ( Removing

) Fit the bulb for the front direction indicator in the bulb holder.Connect the electrical connection, then fit it in its housing in the bulb holder and rotate it in a clockwise direction.Connect the negative (-) battery terminal

Removing ( Refitting

) - 7040D12 engine front side cover (one) lh or rh - r r1. Disconnect the electrical connection.

	Name	Connector
1	Left headlamp	F10B

	Name	Connector
1	Right headlamp	F11B

1. Rotate the bulb holder and bulb in an anti-clockwise direction and extract it.2. Extract the bulb from the bulb holder (bayonet mount).

Refitting ( Removing

) Check the condition and the cleanliness of the lamp.Insert the bulb in the bulb holder.Fit the bulb holder in position and rotate it in a clockwise direction.Connect the electrical connection. - 7040D12 engine front side cover (one) lh or rh - r rCheck that the light cluster and the direction indicators are working.
