3315117 - 7025A57 bonnet catch hook - r r

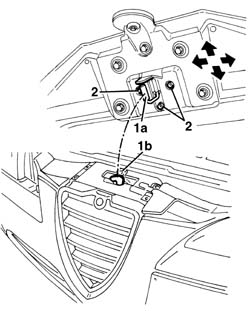

Removing ( Refitting ) Open the bonnet lid.1. Undo bolts (1a) retaining the catch hook to bonnet (1b), then remove. Refitting ( Removing ) Fit the hook and tighten the three bolts retaining it to the bonnet.Close the bonnet lid. Removing ( Refitting )  - 7055A84  front ornament - r r1. Undo the bolts securing the moulding.2. Remove the moulding. 1. Undo the hook fixing bolts.2. Remove the hook. Refitting ( Removing ) Check that the hook is not damaged.1. Place the hook in position.2. Screw in the bolts without tightening them. Place the moulding in position.Tighten the bolts securing the moulding.1. Temporarily attach the hook (1a) for the bonnet lid to the lock (1b) so that the actual hook is correctly positioned using the slots in the openings for the bolts. The arrows indicate possible movements.2. Tighten the hook bolts.  - 7055A84  front ornament - r rCheck that the bonnet lid is correctly attached.
