3315211 - 7040H10 roof panel lining - r r

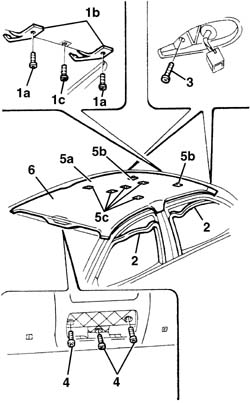

Removing ( Refitting )  - 7005A20  Front side DOOR - R.R. - 7065C34  l/h or r/h sun blind (one) - r+r - 7040E40  modular front courtesy light - r r - 7040E28  courtesy light on sun blind - r r - 7040H32  sliding roof switch door panel - r r - 7065C30  interior l/h or r/h grab handle (one) - r+r - 7040H30  front pillar trim - r r - 7040H36  central trim lower element - r r - 7040H38  central pillar upper element - r r - 7040H34  central pillar trim - r r - 7040E17  lh or rh rear courtesy light - r r - 7065C68  rear view mirror - r+r - 7065C59  interior rear view mirror with automatic antiglare device - r r1. Unscrew bolts (1a) retaining rear sun blind mounting hooks (1b). Unscrew rear roof panel retaining bolt (1c).Pull away the upper ends of the rear pillar trim and driver's side central trim.

NameCountry
-Scraper blade1.823.014.000
2. Pull away the part of the door seal on the driver's side in contact with the roof panel trim.Use adhesive tape to protect any parts that could be damaged by roof removal.Lower the front seat squabs and move the seats forward.3. Unscrew the roof panel retaining bolts located beneath the rear courtesy lights.4. Unscrew the front roof panel retaining bolts in the courtesy light compartment.5. Remove the roof panel from the adhesive fastenings and take out through the right front door opening.
Refitting ( Removing ) Fit the roof panel in its seat.Tighten the front roof panel retaining bolts in the courtesy light compartment.Tighten the roof panel retaining bolts beneath the rear courtesy lights.Raise the front seat squabs and move the seats back into the correct position.Remove the protective tape applied previously.Refit the door sealing strip.Fit the pillar trim in its seat.Tighten the rear roof panel retaining bolt.Tighten the rear sun blind mount hook retaining bolts. - 7065C59  interior rear view mirror with automatic antiglare device - r r - 7065C68  rear view mirror - r+r - 7040E17  lh or rh rear courtesy light - r r - 7040H34  central pillar trim - r r - 7040H38  central pillar upper element - r r - 7040H36  central trim lower element - r r - 7040H30  front pillar trim - r r - 7065C30  interior l/h or r/h grab handle (one) - r+r - 7040H32  sliding roof switch door panel - r r - 7040E28  courtesy light on sun blind - r r - 7040E40  modular front courtesy light - r r - 7065C34  l/h or r/h sun blind (one) - r+r - 7005A20  Front side DOOR - R.R. Removing ( Refitting )  - 7065C34  l/h or r/h sun blind (one) - r+r (right and left)  - 7040E40  modular front courtesy light - r r - 7040E28  courtesy light on sun blind - r r (right and left)  - 5580E50  antitheft device volumetric sensor r r following electrical circuit check - 7065C30  interior l/h or r/h grab handle (one) - r+r (all)  - 7040H30  front pillar trim - r r (right and left)  - 7040H36  central trim lower element - r r (right and left)  - 7040H38  central pillar upper element - r r (right and left)  - 7040E17  lh or rh rear courtesy light - r r (right and left)  - 7065C68  rear view mirror - r+r - 7065C59  interior rear view mirror with automatic antiglare device - r r1. Unscrew bolts (1a) retaining rear sun blind mounting hooks (1b). Unscrew rear roof panel retaining bolt (1c). 2. Release the door seals in the section by the roof lining on both sides of the vehicle. Protect the parts of the vehicle that could be damaged by the removal of the roof panel using protective tape.Place the front seats in the front end of travel position and lower the backrests backwards.3. Undo the roof panel fixing bolts located in the rear courtesy light housings.4. Undo the roof panel fixing bolts, located in the front courtesy light housing.5. Detach the roof lining (5a) from the inner retainers (5b) and from the velcro inserts (5c).6. Remove the roof lining extracting it through the rear door housing on the driver's side.
Refitting ( Removing ) Check that the lining is not damaged and take care when moving it.Fit the lining in the passenger via the rear door on the driver's side.Attach the velcro inserts.Attach the inner retainers.Tighten the front and rear bolts fixing the roof lining.Fit the door seals.Tighten the rear sun blind mount hook (1b) retaining bolts. - 7065C59  interior rear view mirror with automatic antiglare device - r r - 7065C68  rear view mirror - r+r - 7040E17  lh or rh rear courtesy light - r r (right and left)  - 7040H38  central pillar upper element - r r (right and left)  - 7040H36  central trim lower element - r r (right and left)  - 7040H30  front pillar trim - r r (right and left)  - 7065C30  interior l/h or r/h grab handle (one) - r+r (all)  - 5580E50  antitheft device volumetric sensor r r following electrical circuit check - 7040E28  courtesy light on sun blind - r r (right and left)  - 7040E40  modular front courtesy light - r r - 7065C34  l/h or r/h sun blind (one) - r+r (right and left) Check that all the parts are fitted correctly and check the operation of removed electrical components.
