3315284 - 7055A40 radiator shield - r r

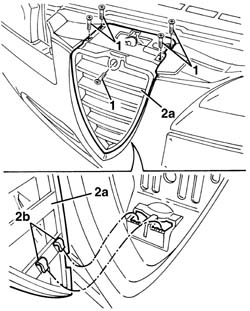

Removing ( Refitting ) Open the bonnet lid.1. Unscrew bolts (1a) and remove radiator shield (1b). Refitting ( Removing ) Fit the shield.Tighten the retaining bolts to the bonnet.Close the bonnet lid. Removing ( Refitting ) Open the bonnet lid.1. Undo the radiator badge fixing bolts.2. Remove the radiator badge (2a) releasing the retainers (2b). Refitting ( Removing ) Check that the badge is not damaged and that the retainers are intact.Place the badge in position attaching the retainers. Tighten the bolts and check that the radiator badge is correctly aligned.Reclose the bonnet lid.
