3315293 - 7055B10 Front BUMPER - R.R.

Removing ( Refitting )  - 7055B39  front additional wheel arch half (one), lh or rh, front element - r r - 7055A41  RIGHT FRONT GRILLE - R.R. - 7055A43  central front grille - r rDisconnect the battery negative terminal.1. Unscrew the bolts retaining the bumper to the beam.2. Unscrew the bolts retaining the bumper to the body.3. Disconnect the fog lamp electrical connection.

	Name	Connector
3	Data not available yet	D50

Lower the ramp.4. Unscrew the upper bolts securing the bumper to the body.5. Remove the front bumper. Refitting ( Removing ) Check that the bumper is undamaged.Fit the front bumper.Tighten the upper bolts retaining the bumper to the body.Raise the lift.Tighten the bolts retaining the bumper to the body and to the lower beam. Take care to keep it aligned with the wings.Connect the fog lamp electrical connection.Connect the battery negative terminal. - 7055A43  central front grille - r r - 7055A41  RIGHT FRONT GRILLE - R.R. - 7055B39  front additional wheel arch half (one), lh or rh, front element - r r Removing ( Refitting )  - 7040D12  engine front side cover (one) lh or rh - r r (right and left)  - 7040D30  engine bay front beam cover - r r - 7055A40  radiator shield - r r - 7055A41  RIGHT FRONT GRILLE - R.R. (right and left)  - 7055B39  front additional wheel arch half (one), lh or rh, front element - r r (right and left) 1. Undo the bolts fixing the bumper in the upper middle area. Raise the car.1. Working on both sides of the bumper, undo the side fixing bolts. 1. Disconnect the electrical connections for the fog lights.

	Name	Connector
1	Left fog lamp	F15

	Name	Connector
1	Front right fog lamp	F16

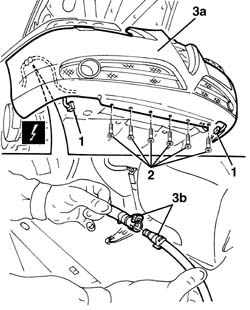

2. Undo the lower bolts fixing the bumper.3. Move the bumper (3a) slightly and disconnect the rapid connector (3b) for the headlamp washer system.Keep the bumper. If necessary,  - 7055B14  Front BUMPER, removed - Stripping - Includes. R.R. components Refitting ( Removing ) Check that the bumper is not damaged.Connect the rapid connector (3b) for the headlamp washer system and position the bumper.Connect the electrical connections for the fog lights.Tighten the bumper fixing bolts.Check that the bumper is correctly aligned. - 7055B39  front additional wheel arch half (one), lh or rh, front element - r r (right and left)  - 7055A41  RIGHT FRONT GRILLE - R.R. (right and left)  - 7055A40  radiator shield - r r - 7040D30  engine bay front beam cover - r r - 7040D12  engine front side cover (one) lh or rh - r r (right and left)
