3309683 - E3570 INTEGRATED RADIO PHONE - Location of components

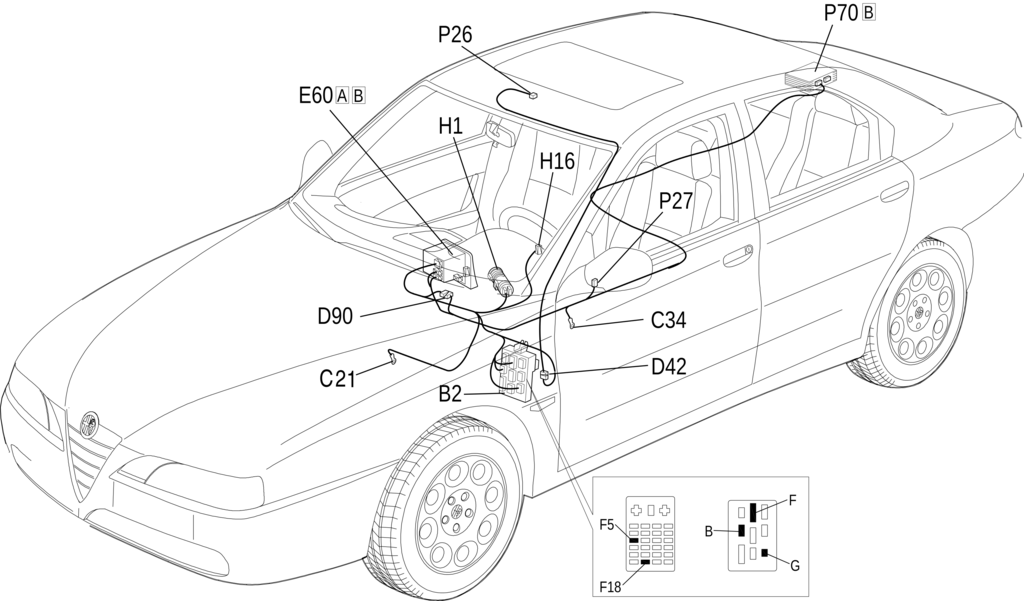

Location of components
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B2 | Junction unit | - |
| B2 | Junction unit | 5505A |
| B99 | Battery fuses junction unit (CBA) | 5530B |
| C21 | Passenger side dashboard earth | - |
| C34 | ICS earth | - |
| D19 | Dashboard / battery coupling | - |
| D42 | Dashboard-courtesy lights coupling | - |
| D90 | ICS-dashboard coupling | - |
| E60 | ICS display | 5580M |
| H1 | Ignition switch | 5520A |
| H16 | Radio controls on steering wheel | - |
| P27 | Microtelephone | - |
| P70 | Radio-CD amplifier | 5570T |
