184000932 - 1048B24 AIR SUPPLY HOSE FROM RIGID PIPE TO INTAKE MANIFOLD - R.R.

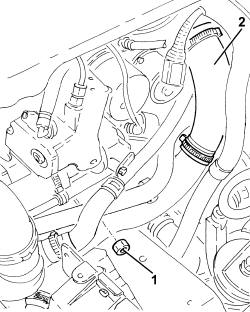

Removing ( Refitting ) Proceed with removal    Op. 5530B10 BATTERY - R+RProceed with removal1. Undo the nut fixing the rigid air supply pipe between the heat exchanger and the intake manifold.    Op. 5530B52 BATTERY DRIP TRAY/SUPPORT - R.R.2. Loosen the bands and remove the air supply hose between the rigid pipe and the intake manifold. Refitting ( Removing ) Place the air supply hose between the rigid pipe and the intake manifold back in its housing.Tighten the nut fixing the rigid air supply pipe between the heat exchanger and the intake manifold.Proceed with refitting    Op. 5530B52 BATTERY DRIP TRAY/SUPPORT - R.R..Proceed with refitting    Op. 5530B10 BATTERY - R+R.
