184001027 - 1080D27 OIL VAPOUR RECOVERY PIPE BETWEEN RIGID PIPE AND TURBO INLET HOSE - R.R.

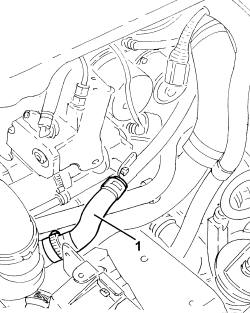

Removing ( Refitting ) Proceed with removal    Op. 5530B10 BATTERY - R+RProceed with removal1. Loosen the band and disconnect the the turbocharger air inlet sleeve from the rigid pipe, air flow meter side.    Op. 5530B52 BATTERY DRIP TRAY/SUPPORT - R.R. 1. Loosen the bands and remove the oil vapour recovery pipe between the rigid pipe and turbo inlet sleeve. Refitting ( Removing ) Refit in its seating the oil vapour recovery pipe between the rigid pipe and turbo inlet hose and tighten the bands.Connect the air intake sleeve to the turbocharger, air flow meter side, and tighten the band.Proceed with refitting    Op. 5530B52 BATTERY DRIP TRAY/SUPPORT - R.R..Proceed with refitting    Op. 5530B10 BATTERY - R+R.
