Removing
(
Refitting
)
1. Remove the bearings (1a) from the differential internal housing using the tools (1b), (1c) and (1d).
Name
Country
1b
Extractor
1.840.005.003
Name
Country
1c
Extractor Arms
1.840.005.302
Name
Country
1d
Fitting tool
1.875.017.000
Refitting
(
Removing
)
1. Fit the bearings (1a) in the differential internal housing using the tool (1b).
Name
Country
1b
Fitting tool
1.875.017.000
Removing
(
Refitting
)
Position the complete differential in a press.1. Position the tool (1a) on the differential casing bearing and using tool (1b) remove the bearing (1c) and adjustment shim (1d) from the seating on the differential casing.
Name
Country
1a
Extractor
1.870.845.000
Name
Country
1b
Grip
1.870.007.000
Remove the differential tapered bearing, crownwheel side, using the same procedure and tools shown above.
Refitting
(
Removing
)

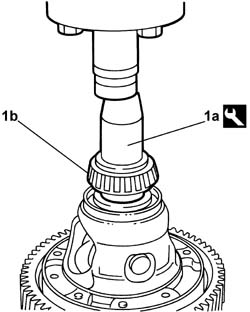

1. Bring the differential case to a press, and using the drift (1a), install the tapered bearing (1b) in the differential case complete with old adjustment shim.
Name
Country
-
Grip
1.870.007.000
Fit the differential tapered bearing, crownwheel side, using the same procedure and tools shown above.
Removing
(
Refitting
)
1. Remove the bearings (1a) from the differential internal housing using the tools (1b), (1c) and (1d).
