184001452 - 5530A40 ALTERNATOR BRACKETS/MOUNT/SPACER - R R

) Position the vehicle on the ramp.Ensure that the ignition key is in the OFF position, then loosen the bolt and disconnect the battery negative (-) terminal.

	Name	Connector
-	Battery	A1B

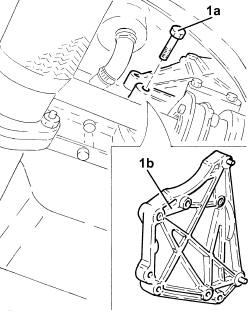

Proceed with removal Op. 4450B04 RIGHT FRONT WHEEL R R.Proceed with removal Op. 7055B66 ENGINE BAY DUSTGUARD PROTECTION IN RIGHT FRONT WHEEL ARCH R R.Proceed with removal Op. 7055B91 RIGHT FRONT SUPPLEMENTARY WHEEL ARCH R R.Proceed with removal 1092G10 single engine belt r r .Proceed with removal Op. 5530A10 ALTERNATOR - R+R.1. Undo the bolts (1a) and remove the alternator mounting (1b).

Refitting ( Removing

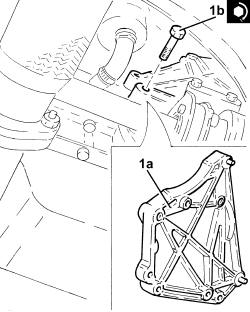

) 1. Place the alternator mounting (1a) back in its housing and secure it tightening the bolts (1b) to the recommended torque.

	Fastening	Component	Ø	Value(daNm)
1b	Bolt	ALTERNATOR SUPPORT	M8	(Engine crankcase side) 2.3 ÷ 2.8

Proceed with refitting Op. 5530A10 ALTERNATOR - R+R.Proceed with refitting 1092G10 single engine belt r r .Proceed with refitting Op. 7055B91 RIGHT FRONT SUPPLEMENTARY WHEEL ARCH R R.Proceed with refitting Op. 7055B66 ENGINE BAY DUSTGUARD PROTECTION IN RIGHT FRONT WHEEL ARCH R R.Proceed with refitting Op. 4450B04 RIGHT FRONT WHEEL R R.Connect the negative (-) battery terminalRemove the vehicle from the ramp.
