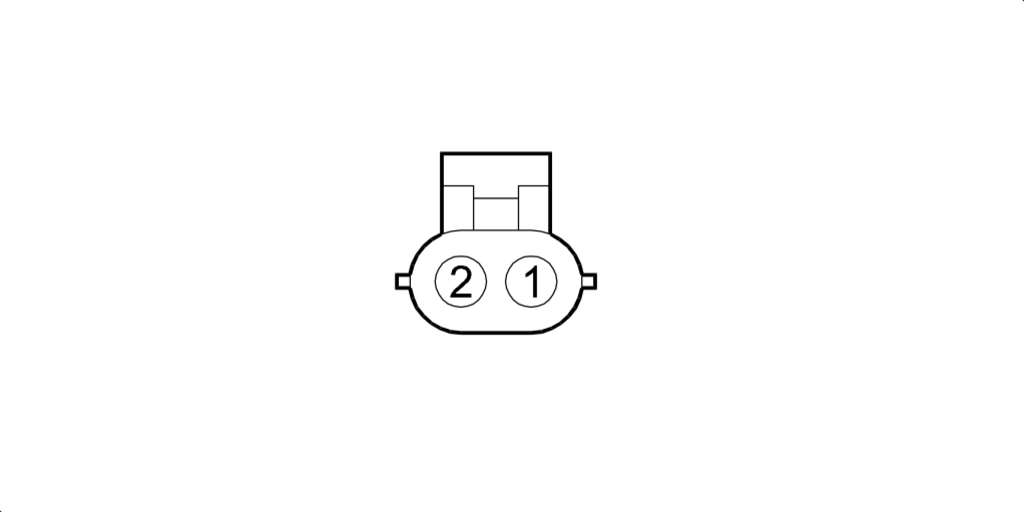

184003150 - K046 RPM SENSOR (ENGINE) (70 CV)
| Wiring | Colour |
|---|---|
| See 50 ENGINE | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec.. | Colour | Node | Connect. | Pin | |
| 1 | C | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 43 | ||
| 2 | GR | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 59 | ||
| Wiring | Colour |
|---|---|
| See 50 ENGINE | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec.. | Colour | Node | Connect. | Pin | |
| 1 | C | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 43 | ||
| 2 | GR | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 59 | ||
