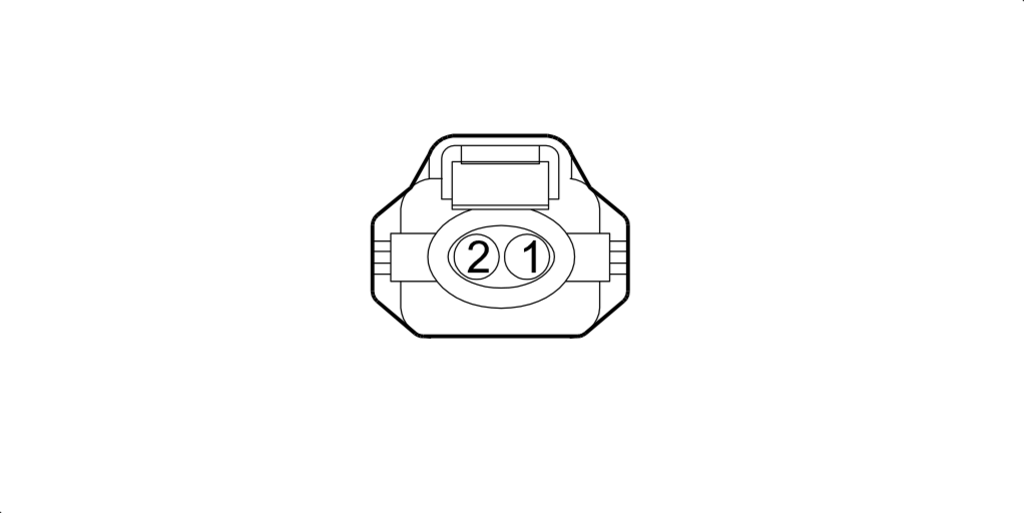

184003412 - N070B INJECTOR (ENGINE) (70 CV)
| Wiring | Colour |
|---|---|
| See 50 ENGINE | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec.. | Colour | Node | Connect. | Pin | |
| 1 | 1,5 | G | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 49 | |
| 2 | 1,5 | GN | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 17 | |
| Wiring | Colour |
|---|---|
| See 50 ENGINE | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec.. | Colour | Node | Connect. | Pin | |
| 1 | 1,5 | G | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 49 | |
| 2 | 1,5 | GN | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 17 | |
