184000013 - VEHICLE TOWING POINTS

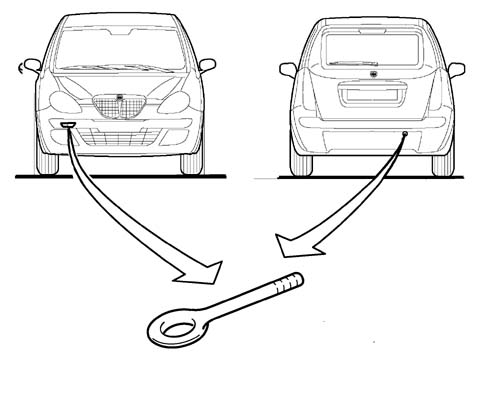

The vehicle is fitted with two tow hooks located in the luggage compartment underneath the carpet, one in the tool box and the other in a special container.The two tow hooks are different lengths: the shorter one should be fitted at the front, the longer one at the back. Tighten the hook involved fully onto either the front or rear threaded pin after having removed the cap on the bumper following the instructions given below.

To remove the front tow hook, proceed as follows:

• adjust the metal clip located at the side of the cap
• release the cap which should remain secured to the bumper by means of a safety cord.

To remove the rear tow hook, proceed as follows:

• insert a flat blade screwdriver inside the slit in the cap
• rest your thumb on the cap to avoid damaging it
• extract the cap (without rotating it) with a movement that is perpendicular to the support plane.
