184002355 - E7023 ESP - WIRING DIAGRAM

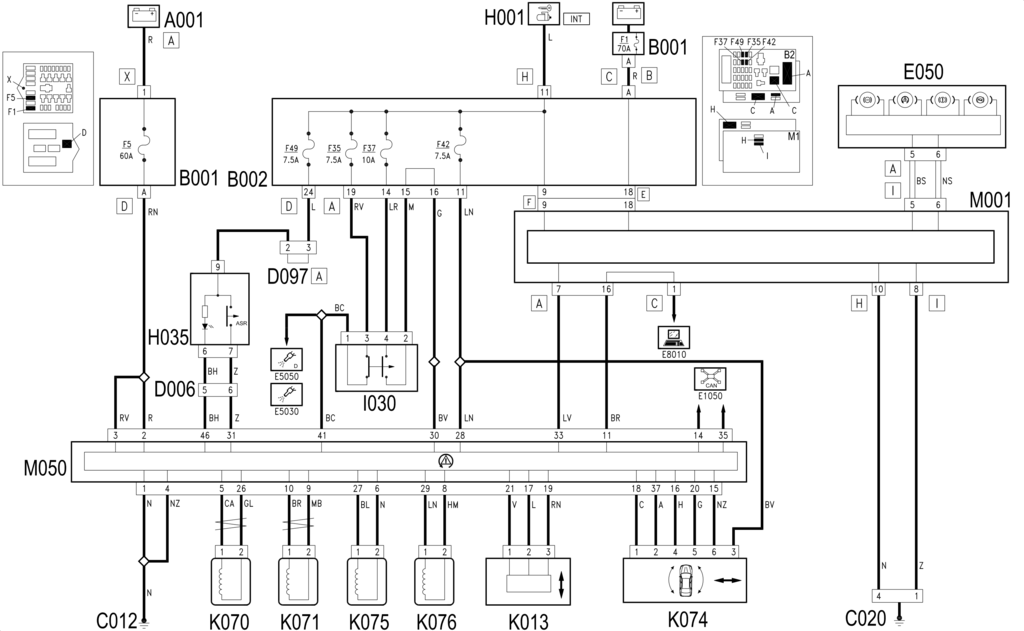

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B2 | Junction unit under dashboard | 5505A |
| D97 | Short circuiting coupling | - |
| H35 | Switches assembly on central console | 7040L |
| I30 | Brake pedal switch | 5550D |
| K13 | Longitudinal acceleration sensor | 3350E |
| K70 | Left. front wheel sensor for ABS | 3340A |
| K71 | Right. front wheel sensor for ABS | 3340A |
| K74 | Lateral acceleration and yaw sensor | 3350E |
| K75 | Left rear wheel sensor for ABS. | 3340A |
| K76 | Right rear wheel sensor for ABS. | 3340A |
| M1 | Body computer | 5505A |
| M50 | ABS control unit | 3340A |
