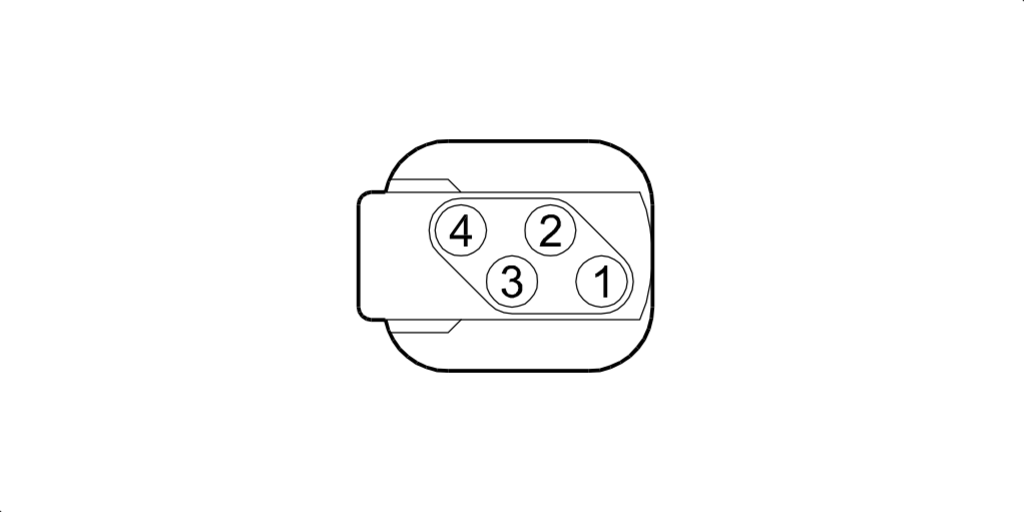

3024290 - K58 Steering sensor ( Connectors )
| Wiring | Colour |
|---|---|
| Connectors | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec.. | Colour | Nodo | Connect. | Pin | |
| 1 | NZ | D97C | 3 | ||
| 2 | LG | D97C | 6 | ||
| 3 | V | D1 | 16 | ||
| 4 | M | D1 | 15 | ||
| Wiring | Colour |
|---|---|
| Connectors | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec.. | Colour | Nodo | Connect. | Pin | |
| 1 | NZ | D97C | 3 | ||
| 2 | LG | D97C | 6 | ||
| 3 | V | D1 | 16 | ||
| 4 | M | D1 | 15 | ||
