3025192 - 3310A30 FRONT BRAKE CALIPER (one) - R.R.

Removing ( Refitting ) Position the vehicle on the ramp.Ensure that the ignition key is in the OFF position, then disconnect the negative battery terminal (-).

	Name	Connector
-	Battery	A1B

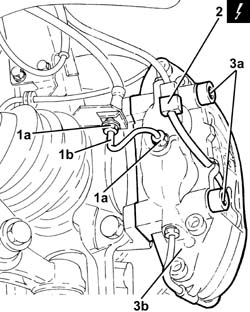

Proceed with removal  - 4450B02  left front wheel r r . Remove the protective cap on the brake caliper bleed valve. Connect the collection system (pipe and reservoir) to the bleed valve on the brake caliper. Operate the brake pedal until the brake-clutch reservoir and pipes are empty.1. Undo the connectors (1a) and remove the rigid pipe to the brake caliper (1b).2. Disconnect the electrical connections for the brake pad wear cable.

	Name	Connector
2	Left brake pad wear sensor (switch)	K20

3. Undo the bolts (3a) and remove the front brake caliper (3b) complete with brake pads. Refitting ( Removing ) 1. Refit the rear brake caliper assembly (1a) complete with pads and tighten the bolts (1b) to the specified torque.

	Fastening	Component	Ø	Value(daNm)
1b	-	-	-	-

2. Connect the electrical connection for the brake pad wear cable.3. Refit the rigid pipe to the brake caliper (3a) in its seating and tighten the connectors (3b) to the specified torque.

	Fastening	Component	Ø	Value(daNm)
3b	Connector	FITTING FOR PIPE TO CALIPER	M10	(Brake caliper side) 1.4 ÷1.8

	Fastening	Component	Ø	Value(daNm)
3b	Connector	FITTING FOR PIPE TO CALIPER	M10	(Flexible pipe side) 1.4 ÷ 1.8

Top up the brake-clutch fluid level  - 0010T64  brake and or clutch fluid check level and top up as necessary .Bleed the air from the hydraulic braking system  - 0010T65  hydraulic brake system bleed air .Proceed with refitting  - 4450B02  left front wheel r r .Connect the negative (-) battery terminal.Remove the car from the ramps.
