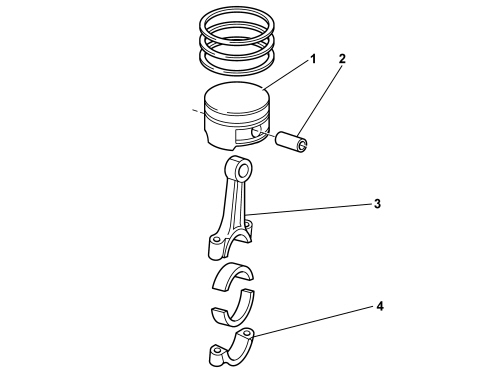

3360104 - 1028H PISTONS AND CONNECTING RODS

CONSTRUCTION SPECIFICATIONS

Connecting rods

The connecting rods are made from spheroid cast iron with a copper alloy bush fitted for matching the piston and gudge pin.The floating pins are held in place by two expansion rings that are housed in grooves on the piston hubs.

Pistons

The pistons are made from silicon aluminium alloy, the piston crown is flat and there is an arrow stamped on it pointing in the direction of the timing side so that it is correctly fitted.
