3360119 - 1088C WATER PUMP AND THERMOSTAT

WATER PUMP

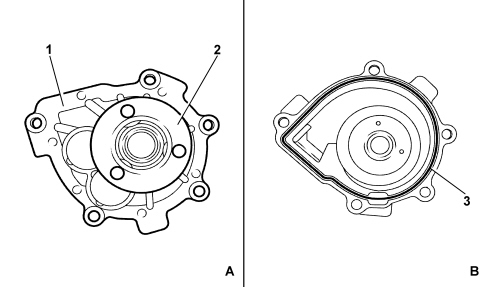

The water pump on the Z16XEP engine is housed on a support shared with the oil pump and the trapezoid belt tensioner.The pump is activated by means of the trapezoid belt.The silicone seal is vulcanized on the pump module, the application of further sealant would be superfluous.

THERMOSTAT

THERMOSTAT UNIT

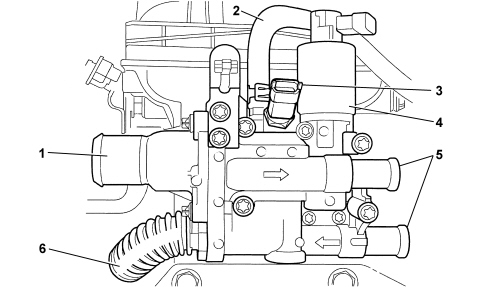

The thermostat unit is fitted on the head and includes several cooling system components in a single housing.

Thermostat

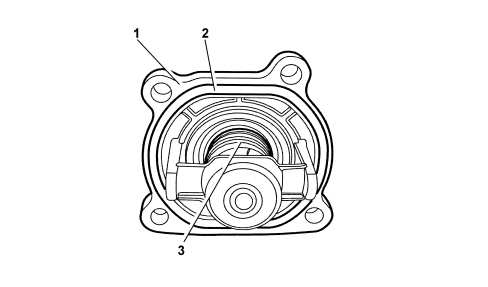

The thermostat on the Z 16 XEP engine is housed on the left side of the engine in the thermostat unit together with the E.G.R. valve.

Rigid connecting pipe between water pump and thermostat unit

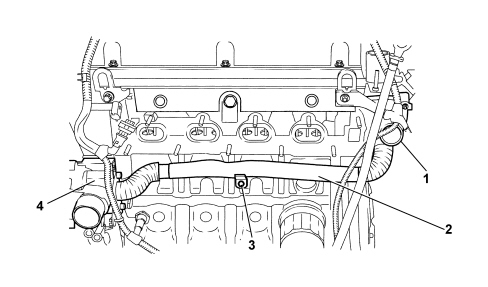

The rigid connecting pipe between the water pump and the thermostat unit is located on the outside of the monobloc on the front of the engine.
