3363546 - 1004D40 ENGINE - POSITION ON STAND AND REMOVE

Removing ( Refitting ) 1. Secure the engine to a hydraulic lift using the lifting hooks positioned on the cylinder head.2. Fit the plate for securing the engine in the seat for the bellhousing and tighten the fixing bolts.
DescriptionCodeFunction
2Plate1.871.001.000Fastening engine to rotating overhaul stand

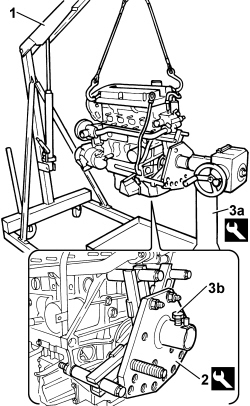

3. Using the hydraulic lift, move the engine until the plate for fastening the engine in the housing on the rotating overhaul stand (3a) is in position, then tighten the bolt (3b) securing the plate.
DescriptionCodeFunction
3Rotating stand1.871.001.000Overhaul engine
Remove the hoist and the hydraulic lift.
Refitting ( Removing ) Secure the engine to a hydraulic lift using the lifting hooks positioned on the cylinder head.Undo the bolt securing the engine fastening plate.Using the hydraulic lift, move the engine, remove it from the overhaul stand and place it on a suitable support.
DescriptionCodeFunction
-Rotating stand1.871.001.000Overhaul engine
Undo the fixing bolts and remove the plate securing the engine from the bellhousing seat.
DescriptionCodeFunction
-Plate1.871.001.000Fastening engine to rotating overhaul stand
Remove the hoist and the hydraulic lift.
