3363699 - INTRODUCTION - EXHAUST PIPES AND SILENCERS

CONSTRUCTION SPECIFICATIONS

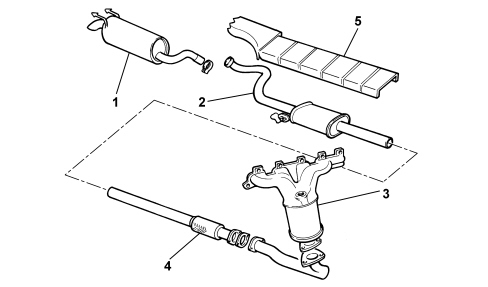

The engine exhaust gases flow through the manifold to the three-way catalytic converter (3) (see 1080).There is a flexible element (4) in the front section of the exhaust pipe to restrict the transmission of vibrations.The middle and rear sections of the exhaust pipe include two silencers.Special guards prevent heat radiating toward the body.The various components are supported by mounts and flexible rings secured to the underbody. The exhaust pipes for the Z16EP engine are illustrated in the diagram below
