3363566 - 1084B18 ENGINE OIL PUMP, REMOVED - CHECK AT BENCH

1. Undo the retaining bolts.2. Remove the oil pump cover.3. Remove the inner rotor (3a) and the outer rotor (3b).

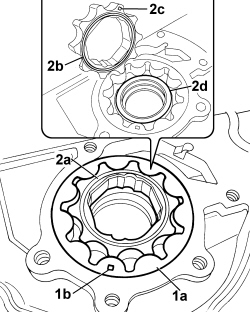

Clean the rotors and the housing on the pump module thoroughly.Visually inspect that there are no signs of wear on the rotors or the pump module, replace any damaged components.1. Fit the outer rotor (1a) keeping the reference (1b) in sight.2. Fit the inner rotor (2a) positioning the guide seal (2b) on the marked surface (2c) inside the housing (2d) on the pump module.
1. Using a feeler gauge, check that the clearance between the outer rotor and the pump module is within the recommended values.
SubjectValue
-Outer rotor/pump module clearance (mm)-
1. Using a feeler gauge, check that the clearance between the outer rotor and the inner rotor is within the recommended values.
SubjectValue
-Outer rotor/inner rotor clearance (mm)-
1. Place a calibrated bar on the pump module.2. Using a feeler gauge, check that the clearance between the rotors and the pump module is within the recommended values.
SubjectValue
-Inner rotor/pump module endfloat (mm)-
SubjectValue
-Outer rotor/pump module endfloat (mm)-
1. Fit the oil pump cover.2. Tighten the fixing bolts to the recommended torque.
Value daNmFasteningComponentØ
20.8Bolt--
1. Undo the oil pressure relief valve cap.2. Remove the spring.3. Remove the piston.
Clean the cap, the piston and the spring thoroughly.Fit the piston and the spring in place and tighten the oil pressure relief valve cap to the recommended torque.
Value daNmFasteningComponentØ
-1.5Bolt--
